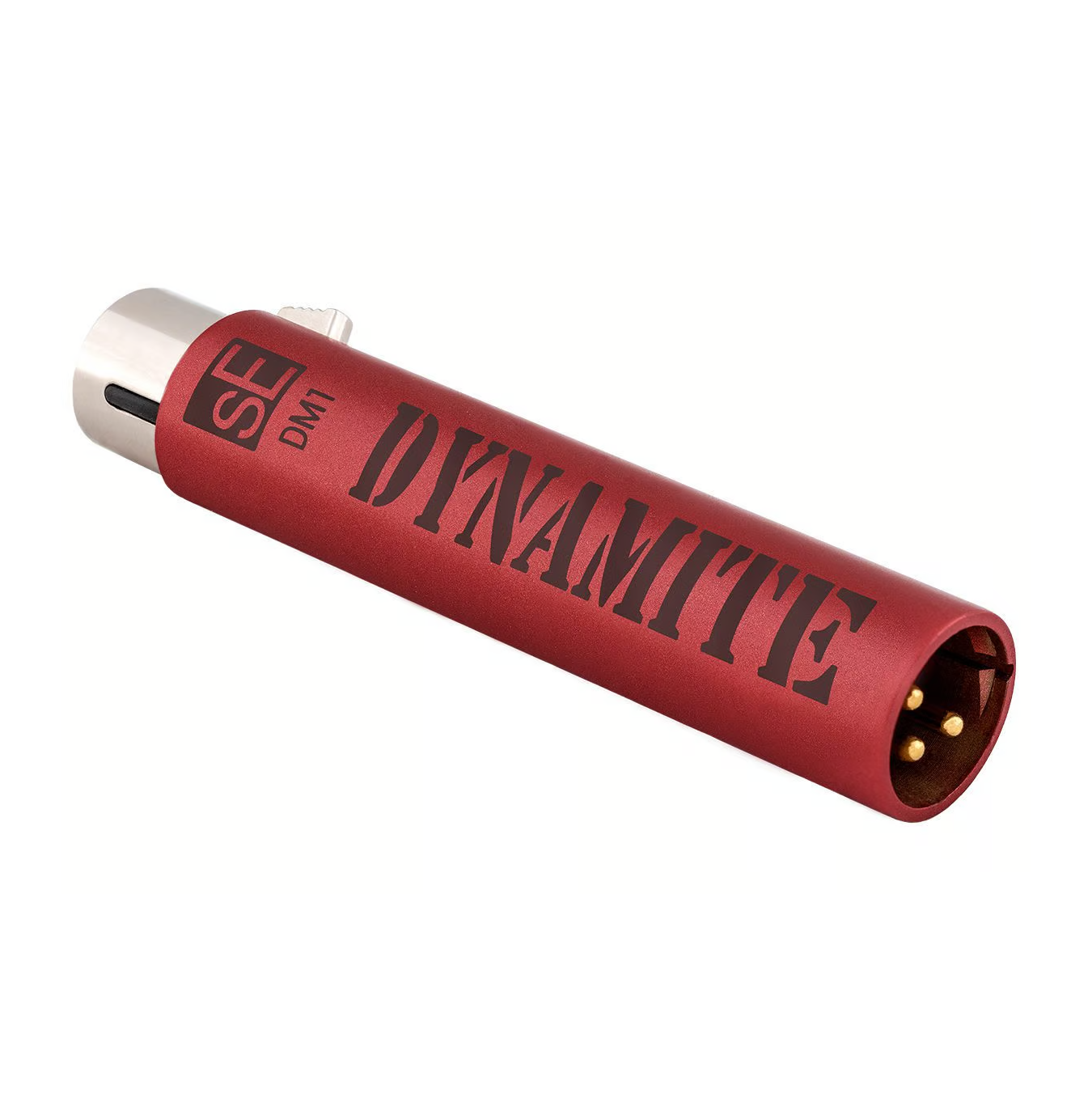

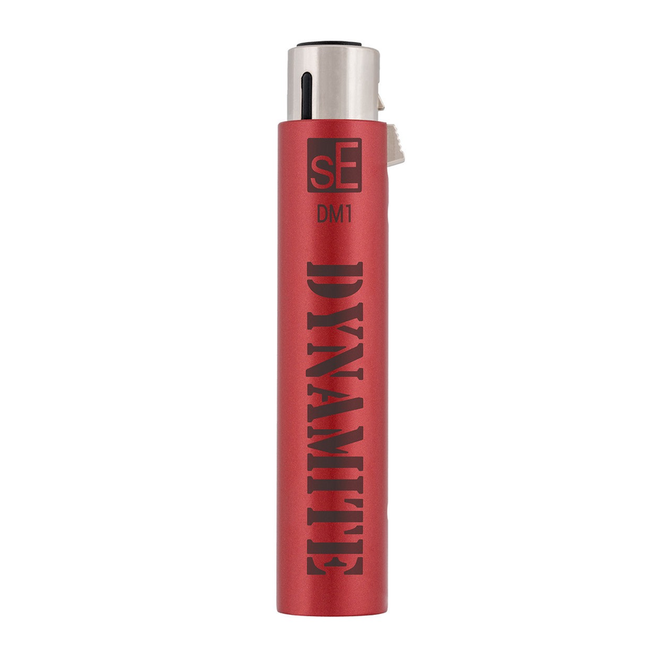

sE Electronics DM1 Dynamite Active Inline Preamp for Passive Dynamic & Ribbon Mics

Product Description

EXPLOSIVE LEVEL FOR ALL YOUR PASSIVE MICS

An ultra-slim active inline preamp that fits seamlessly between your mic and mic pre, providing a massive +28dB of clean, transparent gain for all your dynamic and passive ribbon microphones.

RECOMMENDED USE

Dynamic & passive ribbon microphones

HIGHLIGHTS

• Now also available in a matte-black finish
• Sophisticated class-A design and specially-selected high-grade FETs for a signal boost without coloration
• Vastly lower output impedance and nearly half the noise of anything else on the market to raise any mic level with clarity
• Always a consistent +28dB regardless of the connected load to enable mics with a lower output
• Provides improved level to a preamp – all without adding noise or coloration, bringing new life to your favorite passive microphones
• All-metal housing and premium finish ensures the DM1 can handle demanding on-tour or recording/broadcast studio lifestyles
• Gold plated XLR connector for loss-free reliable signal connection
• Perfect for podcasting, recording, or live sound

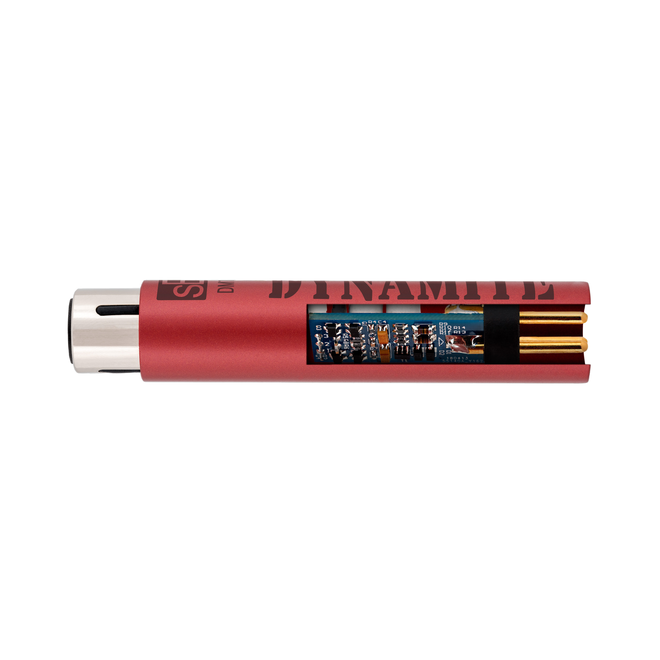

Inside the DM1 DYNAMITE

[+]28DB OF CLEAN, CONSISTENT GAIN, INDEPENDENT OF LOAD

The DM1 provides +28dB of consistent gain regardless of the connected load, thanks to its dedicated buffer amplifier. Designed for neutral, balanced sound quality, the DM1 DYNAMITE is the perfect way to boost the signal of any dynamic or passive ribbon microphone.

SOPHISTICATED CLASS-A ELECTRONICS

With a sophisticated class-A transformerless design and specially-selected high-grade FETs, the DM1 has vastly lower output impedance and nearly half the noise of anything else on the market for pristine sound quality.

SLIM, RUGGED ALL-METAL HOUSING WITH PREMIUM FINISH

The DM1 is built to provide reliable, consistent operation for the most demanding on-stage applications in the most demanding environments. With a roadworthy, slim all-metal design and robust construction with high-quality manufacturing standards to handle drops, falls and even kicks.

DEDICATED OUTPUT BUFFER AMPLIFIER

Whether you’re a podcaster, recording engineer, or running live sound, the DM1 is the perfect way to boost the signal from a passive mic, reduce the likelihood of interference, and provide a significantly improved level to your preamp – all without adding noise or coloration. In addition, its output impedance is the lowest in its class, allowing the DM1 to drive long cable runs while reducing susceptibility to RF interference, buzz and hum.

LOSS-FREE & RELIABLE SIGNAL CONNECTION

Gold-plated XLR connectors ensure loss-free and reliable signal connection for your favorite dynamic and passive ribbon microphones.

Specs

Power

• Electrical Impedance: 135 Ohms
• Recommended Load Impedance: >1K Ohms
• Connectivity: 3-pin male/female XLR connector
• Powering: 48V Phantom Power (P48 according to IEC 61938)

Sound

• Frequency range: 10 Hz - 120 kHz (-0.3 dB)
• Gain: 28 dB
• Current consumption: 3.0 mA
• Max output level (0.5% THD): 8.3 dBV (2.6 V)
• Output noise level: 9 µV (a-weighted)
• Input impedance: 10k Ohms

Dimensions

• Preamp diameter: 19 mm (0.75 in.)
• Preamp length: 96 mm (3.78 in.)
• Preamp weight: 96 mm (3.78 in.)

What's in the box

• DM1
• sE Logo Sticker
• User manual with warranty card
