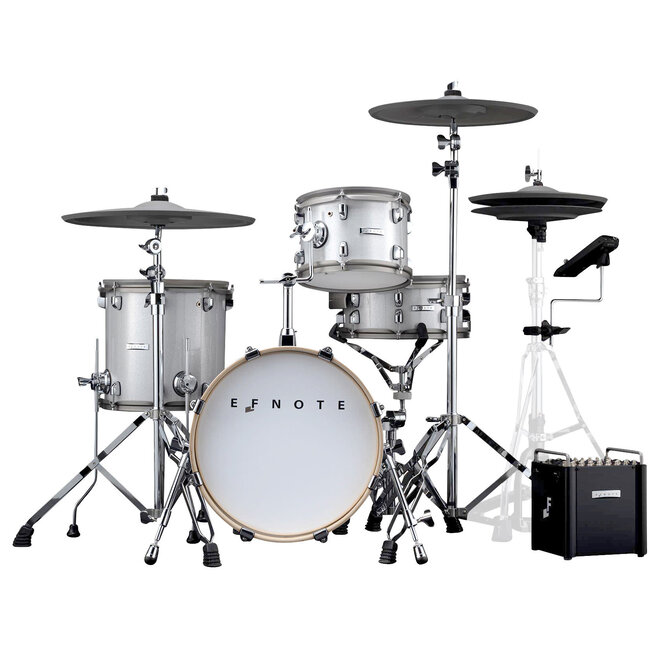

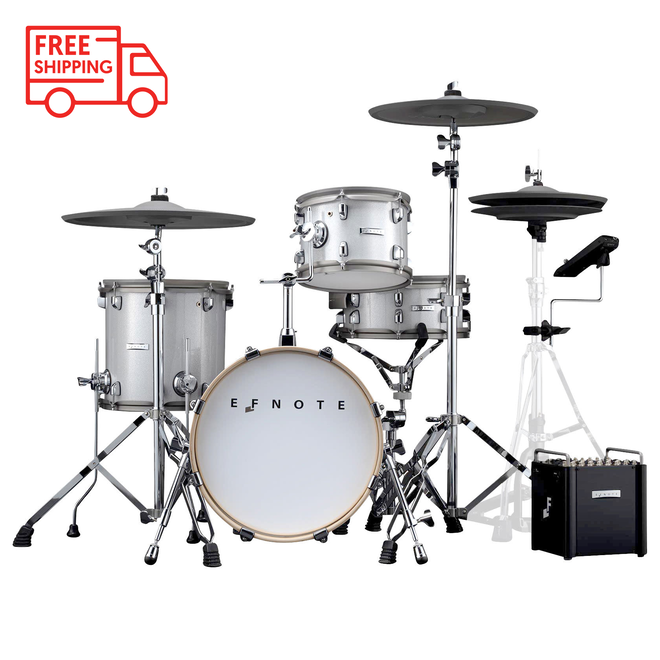

EFNOTE PRO 500 Standard Electronic Drum Set, White Sparkle

Product Description

KICK PEDAL, HI-HAT STAND & THRONE NOT INCLUDED

EFNOTE PRO : Stage Drums™

Enhance the Stage

EFNOTE PRO is designed to digitize your drum riser, then elevates your stage.

By simply connecting up to 12 balanced XLR outputs to your stage snake or sound-board, you will be sending and receiving the highest quality drum sounds on the market with total consistency and perfect isolation.

No More Acrylic Panel

There is no need to isolate your drummer from the choir, acoustic instruments, your audience or congregation. Your drummer is now free to connect and engage with everyone!

EFNOTE PRO has eliminated mic bleed and feedback problems on-stage, creating the ideal FOH mixing environment with clarity, balance and control.

Stage-Box Reliability

EFNOTE PRO has eliminated the need to change mics or mic placement, tuning, head replacement and maintenance at every show.

Just assign its 12-ch balanced outputs, using stereo or mono sends, such as kick, snare, toms, cymbals, click and external sampling pad.

Each channel is equipped with HPF, 2-band EQ, individual compressors for Bus 1-6, and ground lift switches.

Flexibility for All Music

EFNOTE PRO supports 7 shells and 8 cymbals. All pads are individually wired, so players can adapt to any musical environment.

All sound settings can be quickly saved and loaded, for multiple players and set-lists at any time.

In addition, with 12-ch of multitrack USB Audio and 16-ch USB MIDI running simultaneously, a drummer, producer or mixer have quick access to editing, in order to meet artist’s budget requirements.

Design

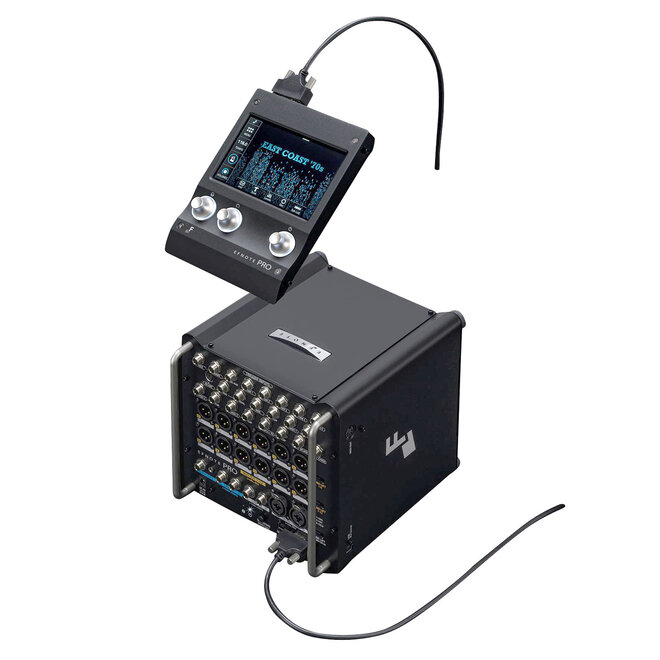

Innovative Two-Piece Design

• The two-piece sound module provides both operability and expandability required by professionals

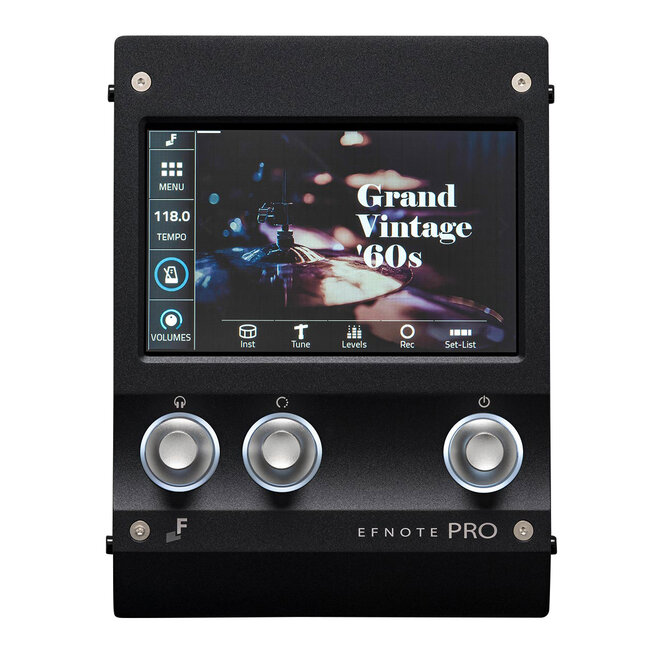

• Low-profile and compact control surface with touch-screen full-color LCD
• Floor-standing base unit with robust enclosure and reliable cable connections

Perfect Customizing

• Mix and match the expansion packs and optional components to create your ideal set
• Consistent pad design
• Supports EFNOTE 3/3X/5/5X/7/7X pads

Beautiful Kit Images Inspire

• Kit themes that highlight the musicality of each kit
• Simple interface design for professionals
• High-definition and high-brightness screen

Discrete Foot Stage Light

• A foot light is equipped on the bottom of the control surface to help with setup and adjustment of the stage box
• Great for dark stages
• Adjustable brightness

Sound

Contains Legendary Drum Sets

• The delicate resonance of aged shells are newly captured, recorded by EFNOTE
• Raw and organic, NOT synthetic and electronic
• Includes maple, birch, acrylic, steel, aluminum, brass, titanium shells, even a towel-muted sound

Diverse Cymbal Collection

• Our mint selection, from bright and crisp modern sounds to dark and soft vintage sounds
• Contains modern trash/effect/stacked cymbal sounds

Instrument Expansion

• New sounds (drum sounds only) will be published on our web page and will be loadable

Overlay Tone (Layering)

• Elements such as tambourines and EDM kicks can be easily layered over each drum sound
• Attack Elements for reinforcing the attack
• Percussion sounds
• eKick, eSnare and eClap sounds

High-Powered Headphone Amp

• 1x 1/4" jack + 1x 1/8" jack for headphones (can be used simultaneously)
• Dedicated 2x headphone amp circuit for enough loudness
• High quality DAC and audio circuit

Playability

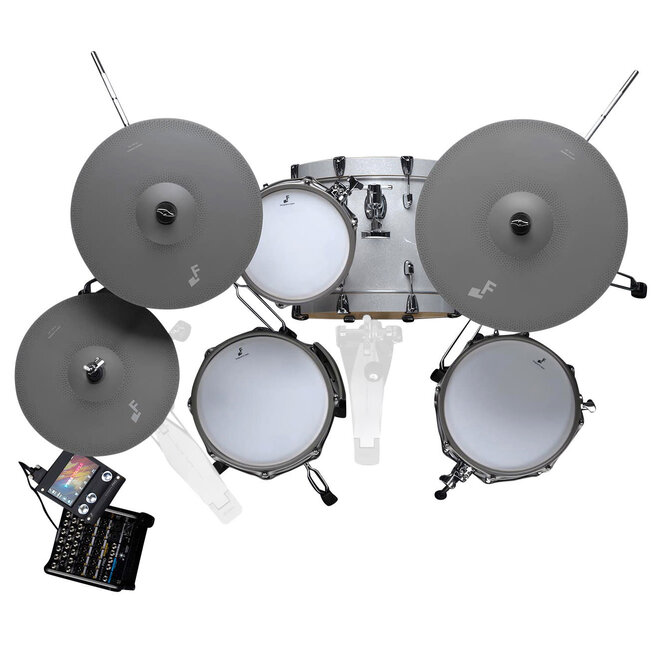

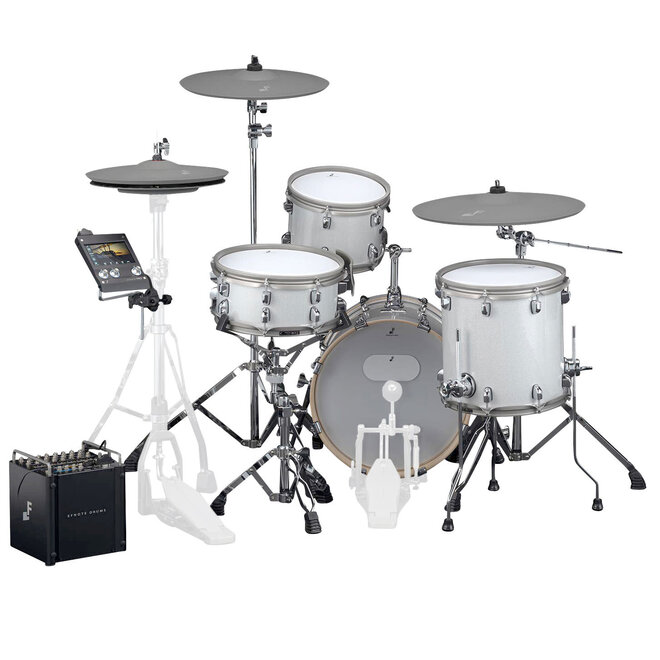

7 Shells and 8 Cymbals

• Build a custom kit for any stage
• 5x 2-zone input for toms
• 6x 3-zone (including 3-zone hi-hat), 2x 2-zone input for cymbals
• Traditional individual trigger connections (TRS), for professional reliability

*Except for the hi-hat which uses dedicated 6-pin cable

ELISE™ Sensing Processor 2.0

• We’ve evolved, delivering improved sensitivity for capturing your most delicate touch
• The new algorithm for even more natural dynamics

Connectivity

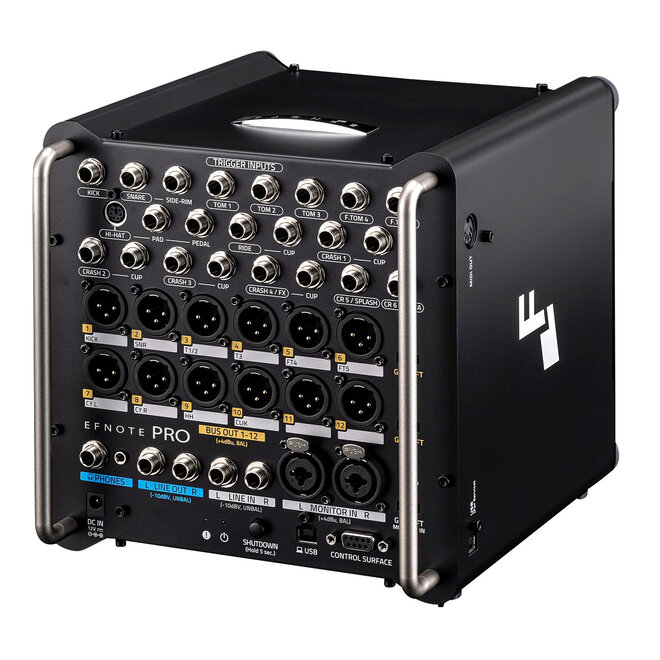

12-ch Buses to the Console

• 12-ch buses, and 12x XLR balanced bus output
• Dedicated bus compression for Bus 1 to 6
• HPF and 2-band EQs for Bus 1 to 12
• Stereo-Link for two adjacent buses
• Ground lift switches

XLR Inputs from the Console

• 2-ch Monitor In (XLR balanced) for monitoring return from the console
• 2-ch Line In (TS unbalanced) for an additional sampling/percussion pad
• Ground lift switch for Monitor In

USB 12-ch Multi-Track Recording

• Simultaneous recording of 12-ch multi-track Audio and multi-track MIDI is available
• Confirmed with major DAWs
• 5-pin DIN MIDI Out

Bluetooth®

• Wireless connection with a smartphone or tablet for playing along
• (EFNOTE app will be available)
