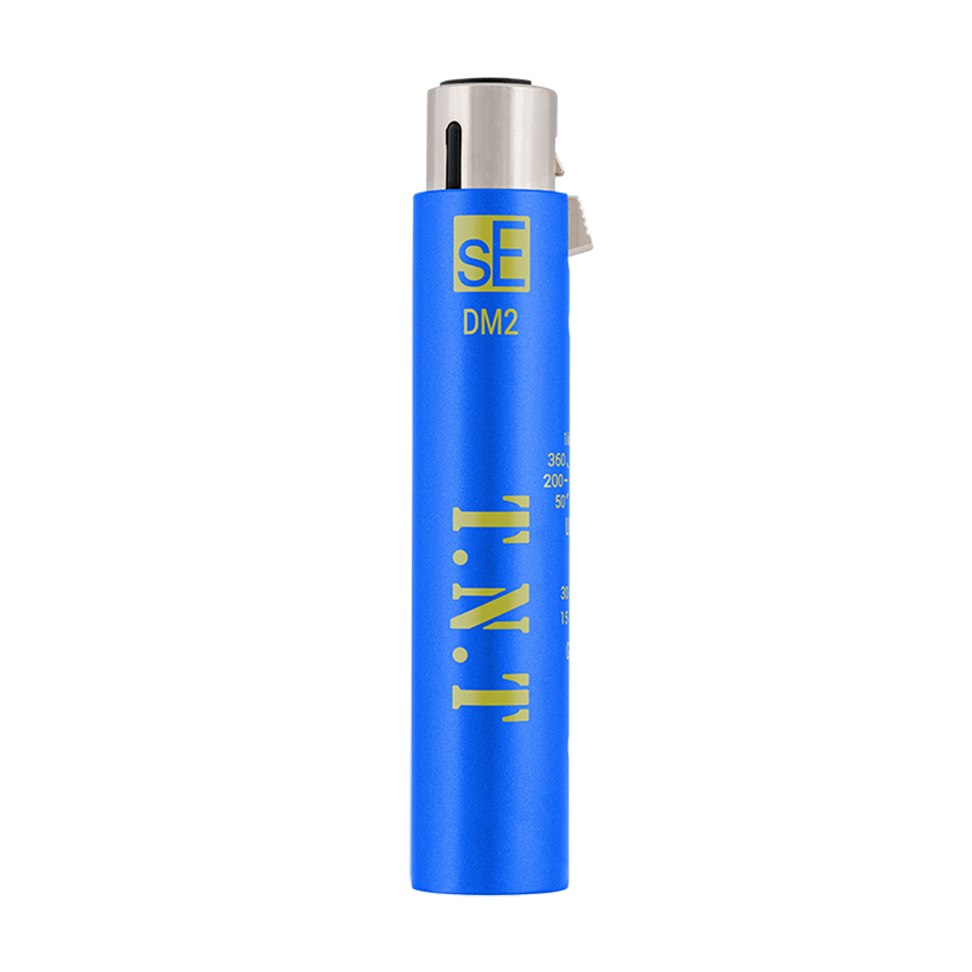

sE Electronics DM2 TNT Active Inline Preamp for Passive Dynamic & Ribbon Mics

Product Description

EXPLOSIVE LEVEL FOR ALL YOUR PASSIVE MICS

The DM2 TNT lets you choose between a moderate +15dB or explosive +30dB of gain with an ultra-high impedance input and eight load settings to perfectly match any passive microphone.

RECOMMENDED USE

Dynamic & passive ribbon microphones

HIGHLIGHTS

• Now also available in a matte-black finish
• Switchable, clean and consistent gain from moderate +15dB to explosive +30dB
• Eight load settings ranging from 50 ohms to stunningly high 10 mega ohms to precisely match any mic
• Sophisticated class-A design and specially-selected high-grade FETs for a signal boost without coloration
• Vastly lower output impedance and nearly half the noise of anything else on the market to raise any mic level with clarity
• All-metal housing and premium finish ensures the DM2 can handle demanding on-tour or recording/broadcast studio lifestyles
• Gold plated XLR connector for loss-free reliable signal connection

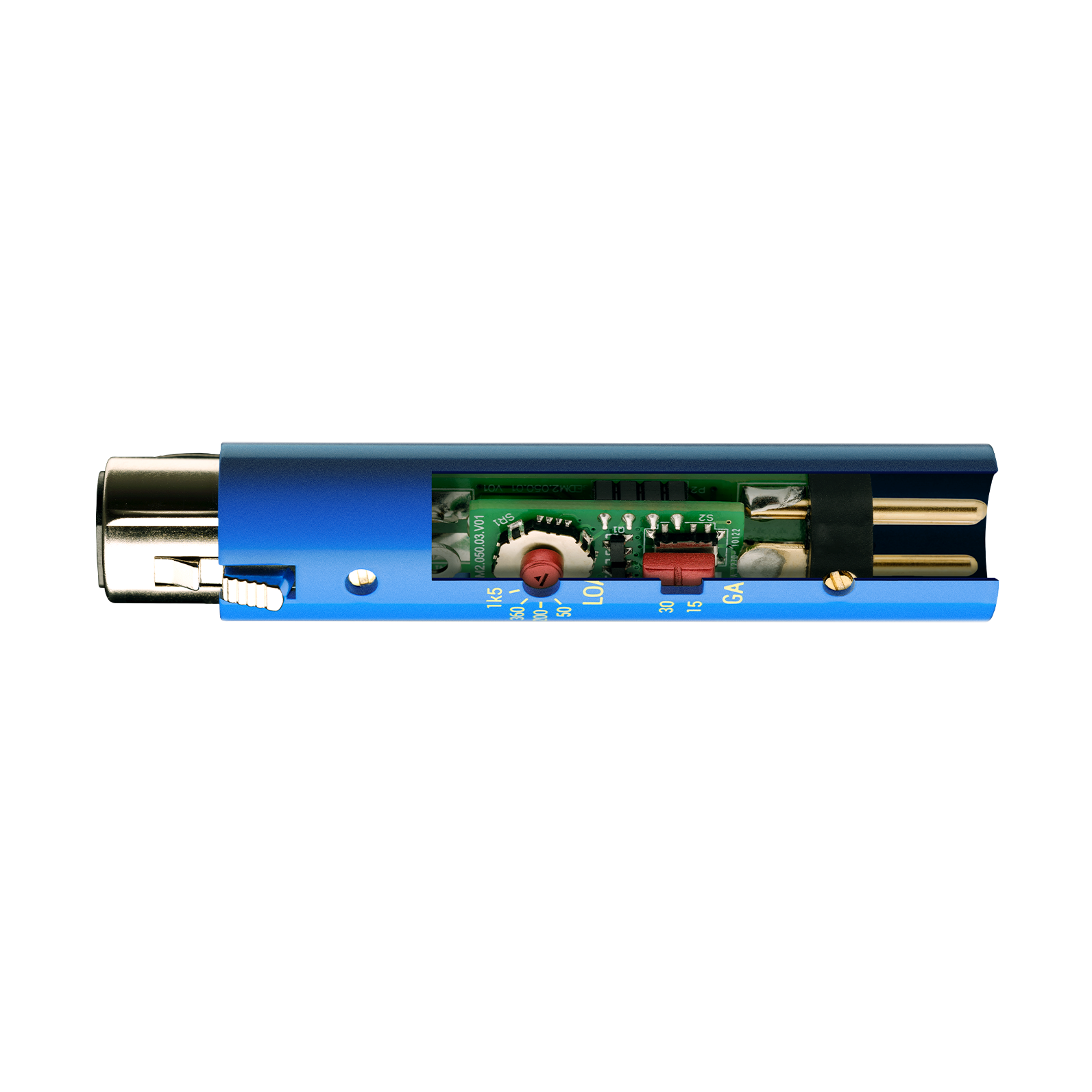

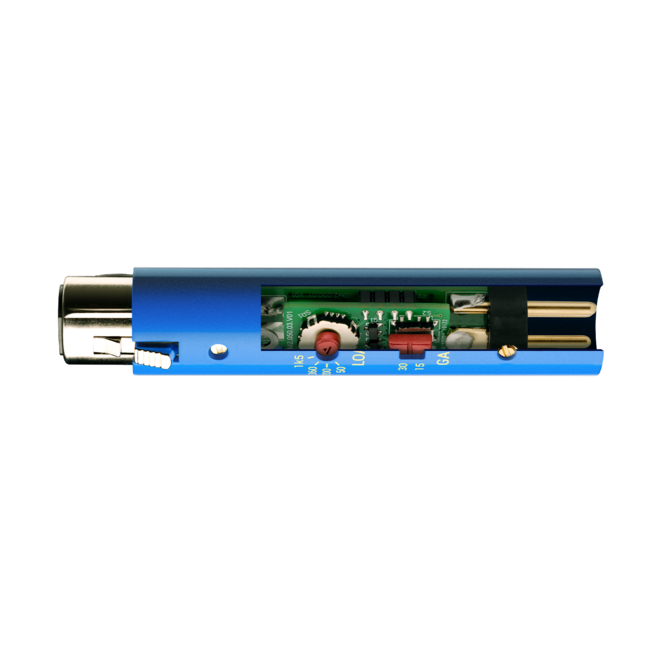

Inside the DM2 TNT

SIGNIFICANTLY IMPROVED LEVEL TO YOUR MIC PREAMP

The DM2 provides switchable +15dB or +30dB of consistent gain regardless of the connected load, thanks to its dedicated buffer amplifier providing you more flexibility for your particular applications.v

CLASS-A DESIGN & LOWEST NOISE IN ITS CLASS

Class-A design and specially-selected high-grade FETs enable vastly lower output impedance and the lowest noise in its class providing the gain needed to for a clean sound and much less noise.

MATCH THE IMPEDANCE OF YOUR FAVORITE MIC

From an unconventionally low 50 ohms to stunningly high 10 mega ohms to match your preamp with any mic accurately to ruthlessly boost the signal independent from load impedance or cable length.

DEDICATED OUTPUT BUFFER AMPLIFIER & RELIABLE SIGNAL CONNECTION

The output impedance is also the lowest in its class, allowing long cable runs while reducing susceptibility to RF interference, buzz and hum with a gold-plated XLR connector for loss-free signal connection.

SLIM, RUGGED ALL-METAL HOUSING & PREMIUM FINISH

Reliable operation in demanding environments & on-stage applications. Robust construction with high-quality manufacturing standards.

Specs

Power

• Electrical Impedance: 135 Ohms
• Recommended Load Impedance: >1K Ohms
• Connectivity: 3-pin male/female XLR connector
• Powering: 48V Phantom Power (P48 according to IEC 61938)

Sound

• Frequency range: 10 Hz - 120 kHz (-0.3 dB)
• Gain: 15 dB / 30 dB
• Current consumption: 3.1 mA
• Max output level (0.5% THD): 9.5 dBV (3.0 V)
• Output noise level: 1 μV @ 15 dB / 6.6 μV @ 30 dB

Dimensions

• Preamp diameter: 19 mm (0.75 in.)
• Preamp length: 96 mm (3.78 in.)
• Preamp weight: 80 g (2.82 oz.)

What's in the box

• DM2
• sE Logo Sticker
• User manual with warranty card
