Product Description

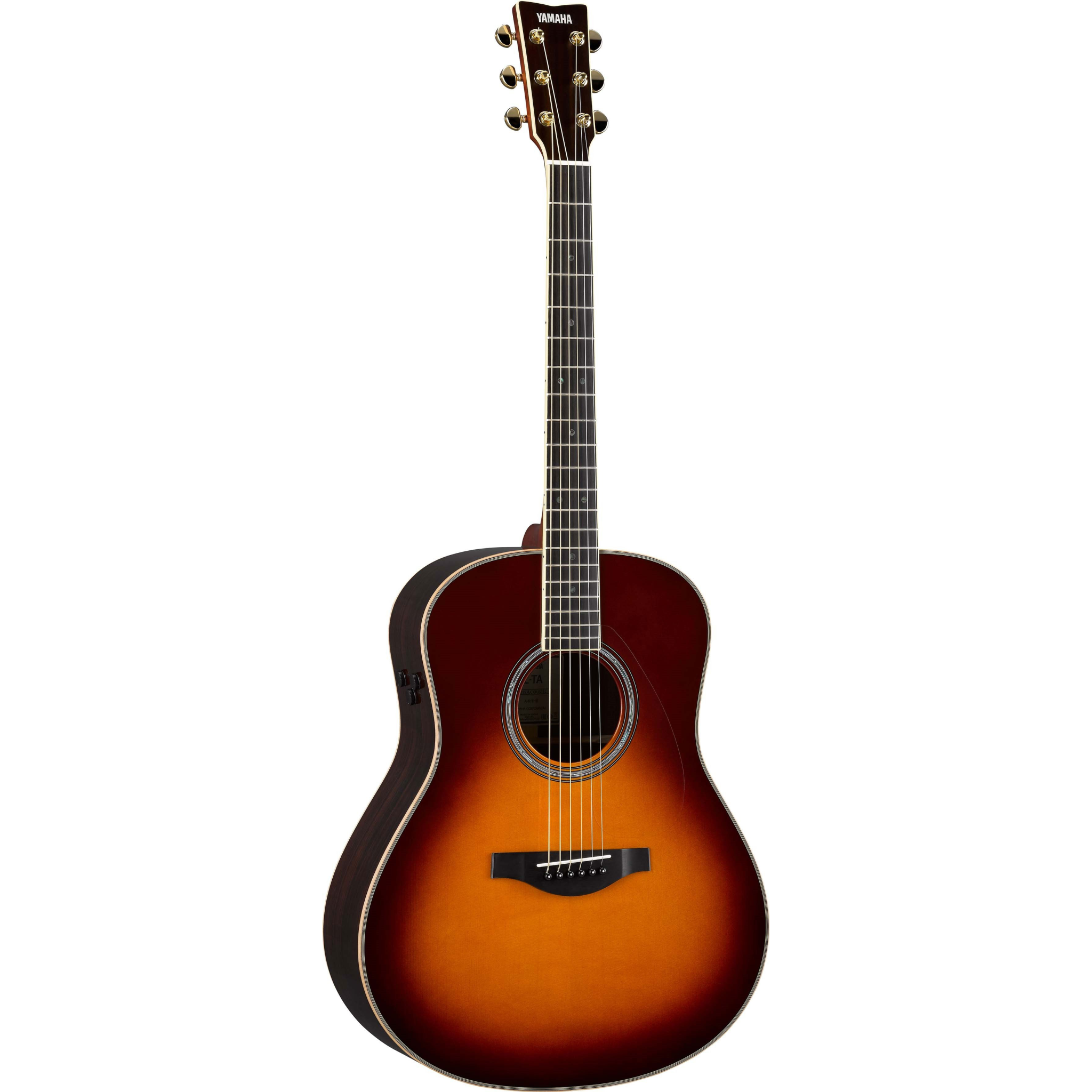

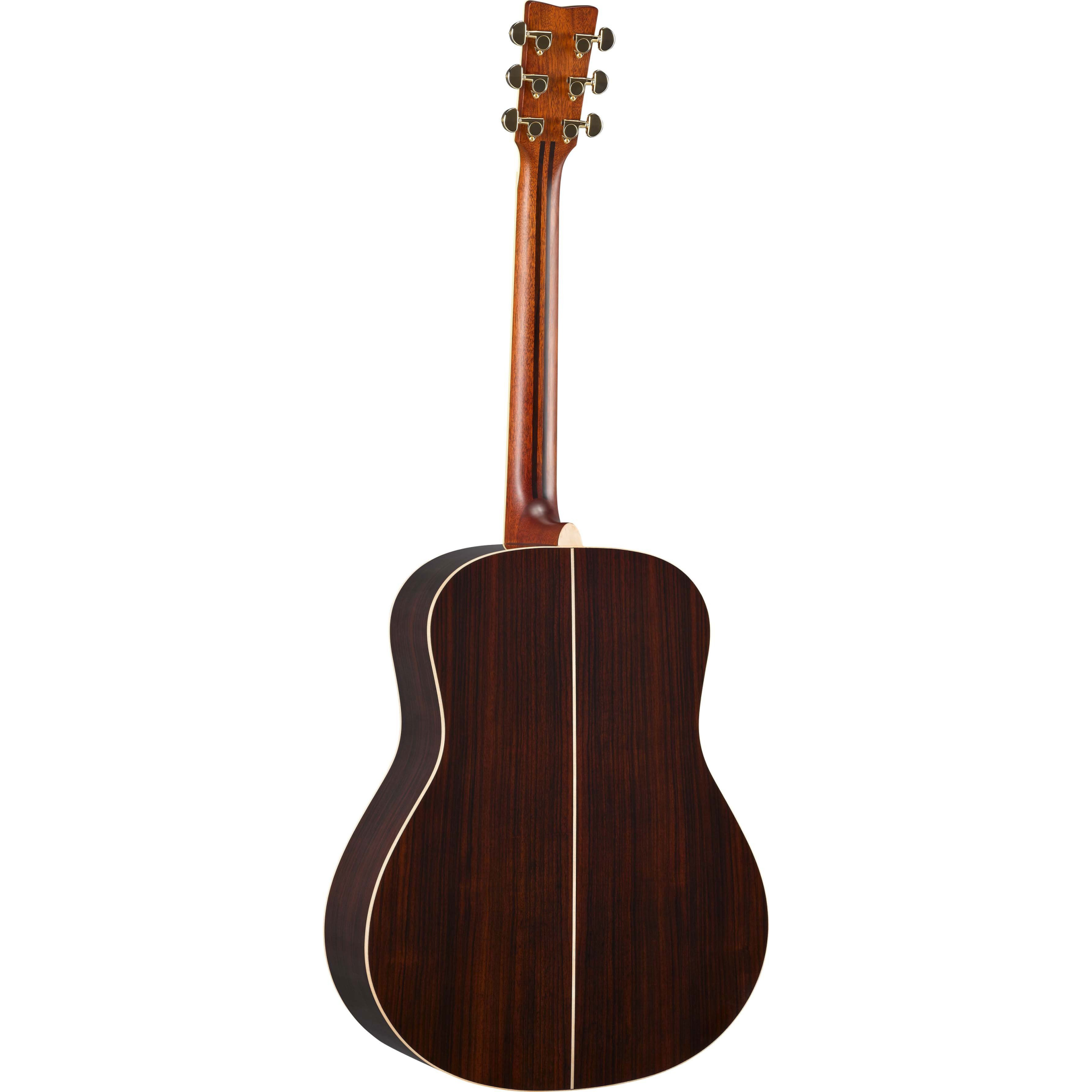

Yamaha LL-TA TransAcoustic guitars transport you to new, creative spaces with immersive reverb and lush chorus effects without needing an amp or other external gear. Great for recreational guitarists, the LL-TA has an A.R.E.-treated, solid Engelmann spruce top with rosewood back and sides. Modified, non-scalloped bracing retains the L Series’ characteristic bright tone while enhancing the low end.
- Traditional Western Body
- Solid Engelmann Spruce Top with A.R.E. Treatment
- Solid Rosewood Back and Sides
- Designed to Provide Superb Acoustic Guitar Sound
Acoustic Guitar (R)Evolution
Playing guitar in a great sounding room is the most inspiring, engaging playing experience imaginable – far more enjoyable than in a dry-sounding room like a lounge, office or den. Yamaha’s TransAcoustic Guitar recreates the incredible experience of playing in a rich, live room without needing any external amplification or effects – just the guitar itself. Whether you’re practicing, writing, recording or just playing for fun, the TransAcoustic Guitar will make you play better, longer and with more creativity. Once you’ve experienced it, you’ll never want to play another acoustic guitar again.
Actuator
An actuator installed on the inner surface of the guitar back vibrates in response to the vibrations of the strings. The vibrations of the actuator are then conveyed to the body of the guitar and to the air in and around the guitar body, generating authentic reverb and chorus sounds from inside the body.
Simple Controls
Three simple knobs let you adjust the amount of effects and the line out volume level. Keeping the controls small minimizes the area of the holes in the body material, which reduces acoustic sound loss.(A) Chorus Control(B) Reverb Control (Room/Hall)(C) TA Switch/Line Out Volume Control
Battery Box
The battery box is integrated into the end-pin jack, which requires fewer holes in the body, thus reducing acoustic sound loss. Connect the cable from the jack to a PA or amp to use as an acoustic-electric guitar.
Specs:
- Body Shape: Yamaha Original Jumbo
- Scale Length: 650mm (25 9/16")
- Body Length: 513mm (20 3/16")
- Total Length: 1046mm (41 3/16")
- Body Width: 415mm (16 5/16")
- Body Depth: 100-125mm (3 15/16" - 4 15/16")
- Nut Width: 44mm (1 3/4")
- String Spacing*: 11.0mm
- Top Material: Solid Engelmann Spruce A.R.E.
- Back Material: Solid Rosewood
- Side Material: Solid Rosewood
- Neck Material: Mahogany + Rosewood 5ply
- Fingerboard Material: Ebony
- Fingerboard Radius: R400mm (23 5/8")
- Bridge Material: Ebony
- Nut Material: Urea
- Saddle Material: Urea
- Bridge Pins: Black ABS with White Dot
- Tuners: Die-cast Gold(TM29G)
- Body Binding: Maple + Black
- Soundhole Inlay: Abalone + Black + White
- Pickguard: Transparent
- Body Finish: Gloss
- Neck Finish: Matte
- Electronics: SYSTEM70 TransAcoustic + SRT Piezo Pickup
- Controls: Reverb(Room/Hall) / Chorus / TA Switch / Line Out Vol
- Connections: LINE OUT
- Strings: Elixir NANOWEB 80/20 Bronze Light
- Accessories: Hex Wrench, 2 x AA Batteries
- Case: Hard Bag
